Class 8: Breast Cancer Analysis Project
Kavi Gonur (PID: A69046927)
- Background
- Data Report
- Performing PCA
- Interpreting PCA Results
- Variance Explained
- Hierarchical Clustering
- Combining PCA and clustering
Background
The goal of today’s mini-project is for you to explore a complete analysis using the unsupervised learning techniques covered in class. You’ll extend what you’ve learned by combining PCA as a preprocessing step to clustering using data that consist of measurements of cell nuclei of human breast masses. This expands on our RNA-Seq analysis from last day.
The data itself comes from the Wisconsin Breast Cancer Diagnostic Data Set first reported by K. P. Benne and O. L. Mangasarian: “Robust Linear Programming Discrimination of Two Linearly Inseparable Sets”.
Values in this data set describe characteristics of the cell nuclei present in digitized images of a fine needle aspiration (FNA) of a breast mass.
Data Report
fna.data <- read.csv("WisconsinCancer.csv")
wisc.df <-data.frame(fna.data, row.names=1)
Note that the first column here wisc.df$diagnosis is a pathologist provided expert diagnosis. We will not be using this for our unsupervised analysis as it is essentially the “answer” to the question which cell samples are malignant or benign.
To make sure we don’t accidentally include this in our analysis, lets create a new data.frame that omits this first column
# We can use -1 here to remove the first column
wisc.data <- wisc.df[,-1]
Finally, setup a separate new vector called diagnosis that contains the data from the diagnosis column of the original dataset. We will store this as a factor (useful for plotting) and use this later to check our results.
# Create diagnosis vector for later
diagnosis <- factor(wisc.df$diagnosis)
Q1. How many observations are in this dataset?
There are 569 observations in this dataset.
Q2. How many of the observations have a malignant diagnosis?
There are 212 malignant diagnoses.
Q3. How many variables/features in the data are suffixed with _mean?
There are 10 variables/features suffixed with _mean.
Performing PCA
The main function in base R for PCA is called prcomp(). An optional
argument scale should nearly always be set to scale=TRUE for this
function.
wisc.pr <- prcomp(wisc.data,scale=T,center=T)
summary(wisc.pr)
Importance of components:
PC1 PC2 PC3 PC4 PC5 PC6 PC7
Standard deviation 3.6444 2.3857 1.67867 1.40735 1.28403 1.09880 0.82172
Proportion of Variance 0.4427 0.1897 0.09393 0.06602 0.05496 0.04025 0.02251
Cumulative Proportion 0.4427 0.6324 0.72636 0.79239 0.84734 0.88759 0.91010
PC8 PC9 PC10 PC11 PC12 PC13 PC14
Standard deviation 0.69037 0.6457 0.59219 0.5421 0.51104 0.49128 0.39624
Proportion of Variance 0.01589 0.0139 0.01169 0.0098 0.00871 0.00805 0.00523
Cumulative Proportion 0.92598 0.9399 0.95157 0.9614 0.97007 0.97812 0.98335
PC15 PC16 PC17 PC18 PC19 PC20 PC21
Standard deviation 0.30681 0.28260 0.24372 0.22939 0.22244 0.17652 0.1731
Proportion of Variance 0.00314 0.00266 0.00198 0.00175 0.00165 0.00104 0.0010
Cumulative Proportion 0.98649 0.98915 0.99113 0.99288 0.99453 0.99557 0.9966
PC22 PC23 PC24 PC25 PC26 PC27 PC28
Standard deviation 0.16565 0.15602 0.1344 0.12442 0.09043 0.08307 0.03987
Proportion of Variance 0.00091 0.00081 0.0006 0.00052 0.00027 0.00023 0.00005
Cumulative Proportion 0.99749 0.99830 0.9989 0.99942 0.99969 0.99992 0.99997
PC29 PC30
Standard deviation 0.02736 0.01153
Proportion of Variance 0.00002 0.00000
Cumulative Proportion 1.00000 1.00000
The next step in your analysis is to perform principal component
analysis (PCA) on wisc.data.
# Check column means and standard deviations
colMeans(wisc.data)
radius_mean texture_mean perimeter_mean
1.412729e+01 1.928965e+01 9.196903e+01
area_mean smoothness_mean compactness_mean
6.548891e+02 9.636028e-02 1.043410e-01
concavity_mean concave.points_mean symmetry_mean
8.879932e-02 4.891915e-02 1.811619e-01
fractal_dimension_mean radius_se texture_se
6.279761e-02 4.051721e-01 1.216853e+00
perimeter_se area_se smoothness_se
2.866059e+00 4.033708e+01 7.040979e-03
compactness_se concavity_se concave.points_se
2.547814e-02 3.189372e-02 1.179614e-02
symmetry_se fractal_dimension_se radius_worst
2.054230e-02 3.794904e-03 1.626919e+01
texture_worst perimeter_worst area_worst
2.567722e+01 1.072612e+02 8.805831e+02
smoothness_worst compactness_worst concavity_worst
1.323686e-01 2.542650e-01 2.721885e-01
concave.points_worst symmetry_worst fractal_dimension_worst
1.146062e-01 2.900756e-01 8.394582e-02
apply(wisc.data,2,sd)
radius_mean texture_mean perimeter_mean
3.524049e+00 4.301036e+00 2.429898e+01
area_mean smoothness_mean compactness_mean
3.519141e+02 1.406413e-02 5.281276e-02
concavity_mean concave.points_mean symmetry_mean
7.971981e-02 3.880284e-02 2.741428e-02
fractal_dimension_mean radius_se texture_se
7.060363e-03 2.773127e-01 5.516484e-01
perimeter_se area_se smoothness_se
2.021855e+00 4.549101e+01 3.002518e-03
compactness_se concavity_se concave.points_se
1.790818e-02 3.018606e-02 6.170285e-03
symmetry_se fractal_dimension_se radius_worst
8.266372e-03 2.646071e-03 4.833242e+00
texture_worst perimeter_worst area_worst
6.146258e+00 3.360254e+01 5.693570e+02
smoothness_worst compactness_worst concavity_worst
2.283243e-02 1.573365e-01 2.086243e-01
concave.points_worst symmetry_worst fractal_dimension_worst
6.573234e-02 6.186747e-02 1.806127e-02
# Perform PCA on wisc.data by completing the following code
wisc.pr <- prcomp(wisc.data, scale=T)
summary(wisc.pr)
Importance of components:
PC1 PC2 PC3 PC4 PC5 PC6 PC7
Standard deviation 3.6444 2.3857 1.67867 1.40735 1.28403 1.09880 0.82172
Proportion of Variance 0.4427 0.1897 0.09393 0.06602 0.05496 0.04025 0.02251
Cumulative Proportion 0.4427 0.6324 0.72636 0.79239 0.84734 0.88759 0.91010
PC8 PC9 PC10 PC11 PC12 PC13 PC14
Standard deviation 0.69037 0.6457 0.59219 0.5421 0.51104 0.49128 0.39624
Proportion of Variance 0.01589 0.0139 0.01169 0.0098 0.00871 0.00805 0.00523
Cumulative Proportion 0.92598 0.9399 0.95157 0.9614 0.97007 0.97812 0.98335
PC15 PC16 PC17 PC18 PC19 PC20 PC21
Standard deviation 0.30681 0.28260 0.24372 0.22939 0.22244 0.17652 0.1731
Proportion of Variance 0.00314 0.00266 0.00198 0.00175 0.00165 0.00104 0.0010
Cumulative Proportion 0.98649 0.98915 0.99113 0.99288 0.99453 0.99557 0.9966
PC22 PC23 PC24 PC25 PC26 PC27 PC28
Standard deviation 0.16565 0.15602 0.1344 0.12442 0.09043 0.08307 0.03987
Proportion of Variance 0.00091 0.00081 0.0006 0.00052 0.00027 0.00023 0.00005
Cumulative Proportion 0.99749 0.99830 0.9989 0.99942 0.99969 0.99992 0.99997
PC29 PC30
Standard deviation 0.02736 0.01153
Proportion of Variance 0.00002 0.00000
Cumulative Proportion 1.00000 1.00000
Interpreting PCA Results
Let’s make our main resukt figure - the “PC plot” or “score plot”, “ordination plot”, etc.
library(ggplot2)

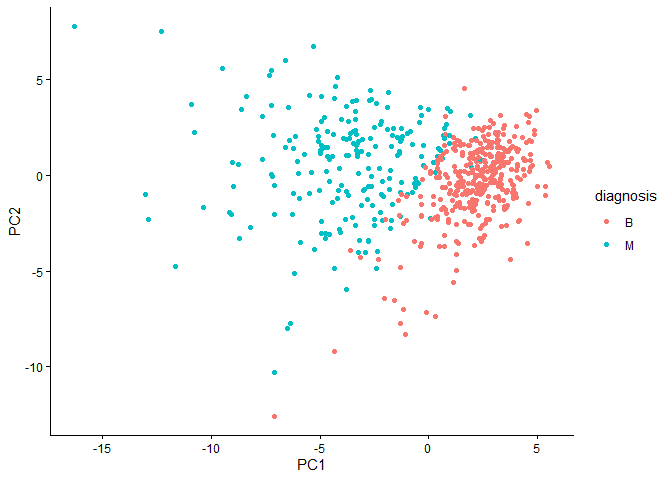

ggplot(wisc.pr$x) +
aes(PC1,PC2, col=diagnosis) +
geom_point() +
theme_classic()
Q4. From your results, what proportion of the original variance is captured by the first principal components (PC1)?
0.4427
Q5. How many principal components (PCs) are required to describe at least 70% of the original variance in the data?
3
Q6. How many principal components (PCs) are required to describe at least 90% of the original variance in the data?
7
Q7. What stands out to you about this plot? Is it easy or difficult to understand? Why?
The plot isn’t that hard to understand, but could be labeled better.
Q8. Generate a similar plot for principal components 1 and 3. What do you notice about these plots?

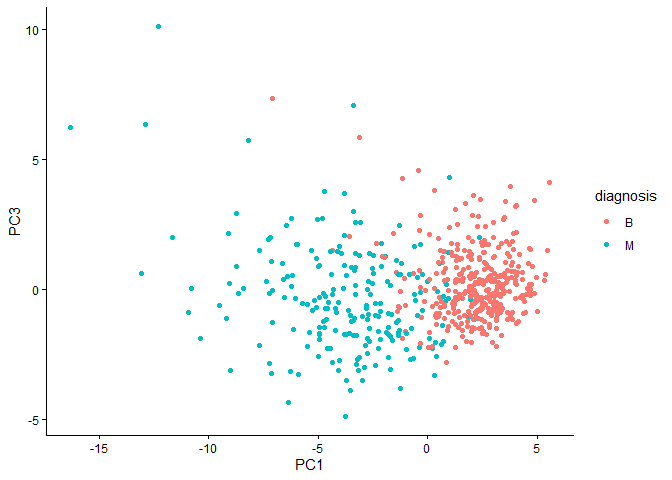

ggplot(wisc.pr$x) +
aes(PC1,PC3,col=diagnosis) +
geom_point() +
theme_classic()
Variance Explained
# Calculate variance of each component
pr.var <- wisc.pr$sdev^2
head(pr.var)
[1] 13.281608 5.691355 2.817949 1.980640 1.648731 1.207357
# Variance explained by each principal component: pve
pve <- pr.var/sum(pr.var)
# Plot variance explained for each principal component
pve_df <- data.frame(PC = seq_along(pve), # 1, 2, 3, ..., length(pve)
pve = pve
)

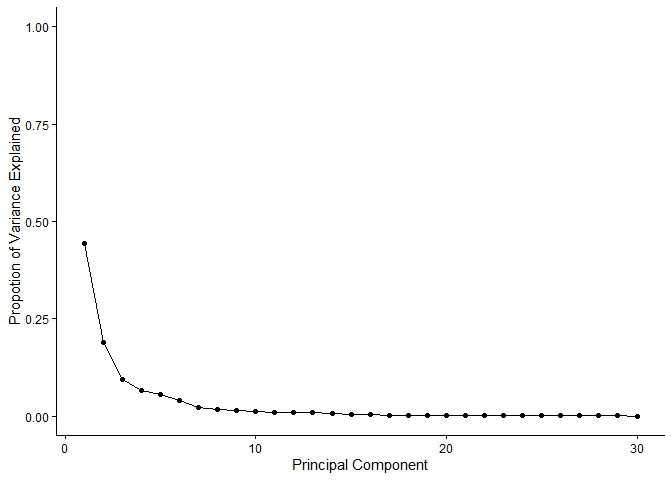

ggplot(pve_df) +
aes(x=PC,y=pve) +
labs(x="Principal Component",y="Propotion of Variance Explained") +
scale_y_continuous(limits=c(0,1)) +
geom_point() +
geom_line() +
theme_classic()
factoextra package
options(repos = c(CRAN = "https://cloud.r-project.org"))
install.packages("factoextra")
Installing package into 'C:/Users/kavan/AppData/Local/R/win-library/4.5'
(as 'lib' is unspecified)
package 'factoextra' successfully unpacked and MD5 sums checked
The downloaded binary packages are in
C:\Users\kavan\AppData\Local\Temp\Rtmpkf4G6z\downloaded_packages
## ggplot based graph
install.packages("factoextra")
Installing package into 'C:/Users/kavan/AppData/Local/R/win-library/4.5'
(as 'lib' is unspecified)
package 'factoextra' successfully unpacked and MD5 sums checked
The downloaded binary packages are in
C:\Users\kavan\AppData\Local\Temp\Rtmpkf4G6z\downloaded_packages
library(factoextra)
Warning: package 'factoextra' was built under R version 4.5.2
Welcome! Want to learn more? See two factoextra-related books at https://goo.gl/ve3WBa

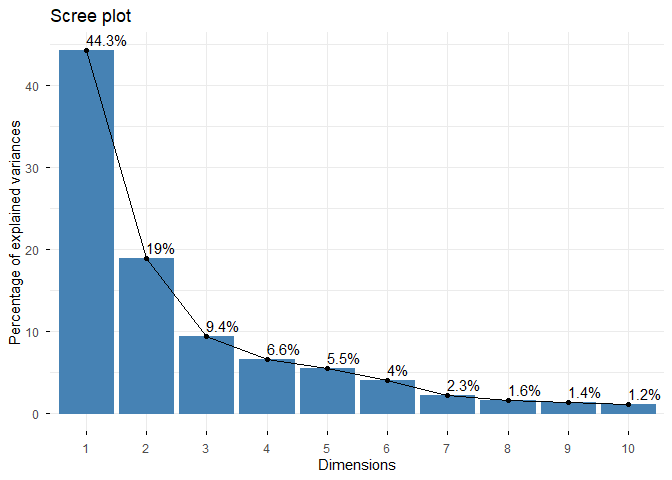

fviz_eig(wisc.pr, addlabels = TRUE)
Warning in geom_bar(stat = "identity", fill = barfill, color = barcolor, :
Ignoring empty aesthetic: `width`.
Hierarchical Clustering
d <- dist(scale(wisc.data))
h <- hclust(d)
plot(h)
Q10. Using the plot() and abline() functions, what is the height at which the clustering model has 4 clusters?
Height = 19

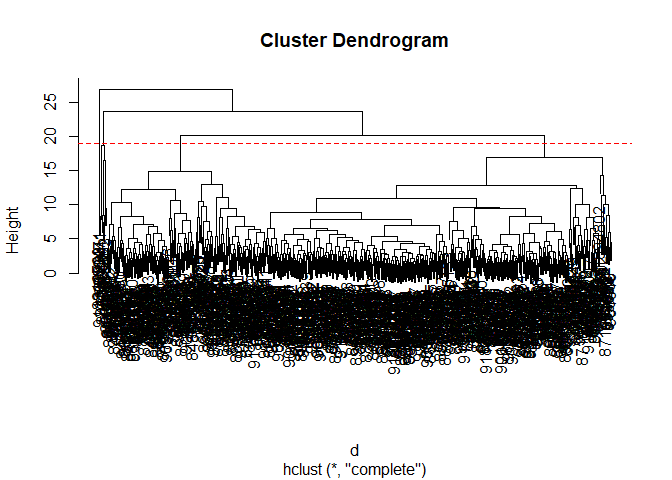

plot(h)
abline(h = 19, col="red", lty=2)
Combining PCA and clustering
d <- dist(wisc.pr$x[,1:3])
wisc.pr.hclust <- hclust(d,method="ward.D2")

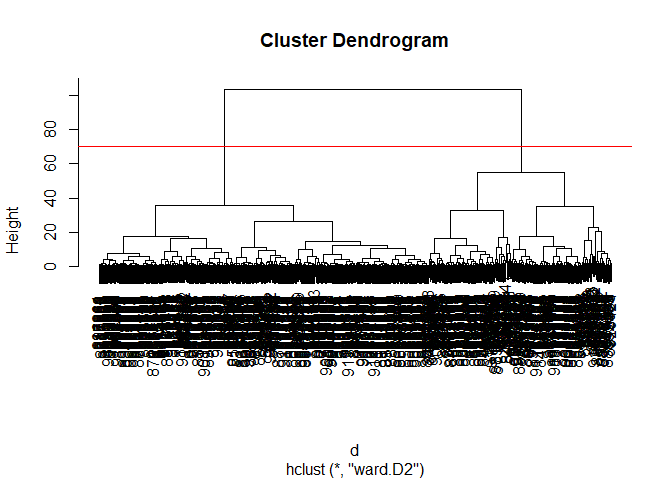

plot(wisc.pr.hclust)
abline(h=70,col="red")
Get my cluster membership vector
grps <- cutree(wisc.pr.hclust,h=70)
table(grps)
grps
1 2
203 366
table(diagnosis)
diagnosis
B M
357 212
Make a wee “cross-table”
table(grps,diagnosis)
diagnosis
grps B M
1 24 179
2 333 33
TP: 179 FP: 24
Sensitivity: TP/(TF+FN)’

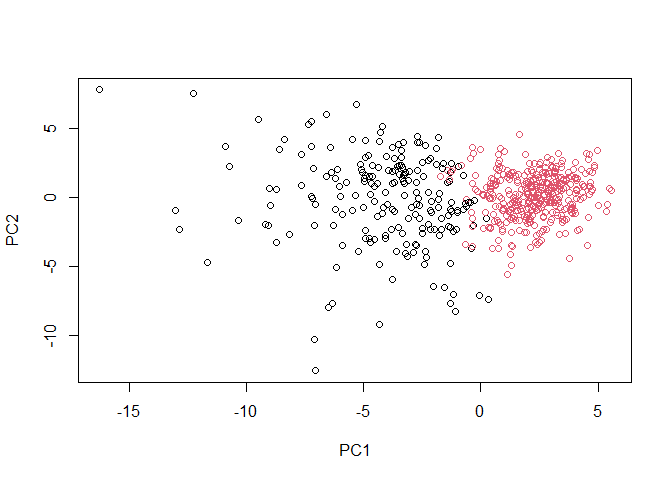

plot(wisc.pr$x[,1:2], col=grps)
plot(wisc.pr$x[,1:2], col=diagnosis)
g <- as.factor(grps)
levels(g)
[1] "1" "2"
g <- relevel(g,2)
levels(g)
[1] "2" "1"
# Plot using our re-ordered factor
plot(wisc.pr$x[,1:2], col=g)
library(rgl)
plot3d(wisc.pr$x[,1:3], xlab="PC 1", ylab="PC 2", zlab="PC 3", cex=1.5, size=1, type="s", col=grps)
rgl.snapshot("pca-3d.png")
